SPIDER CONNECTED GLAZING SOLUTIONS

ReNüTeq® Glaz™ -200-250-300 Series

Hybrid-Stainless Steel/LVB-RLB(Engineered Bamboo) Glazing System:

Glaz - Logo .png
Glaz - Logo .png

Overview:

Innovation, Renewable Technology, and sustainable structural material is uniquely combined to create structural glazing solutions designed and developed specifically for the client and project requirements.  Renewable technologies are typically referenced with regard to energy only, but there are ideal resources and materials that are also considered as renewable.  ReNüTeq provides kitted solutions made from the most rapidly renewable resource available (Engineered Structural Bamboo) along with recycled content(hardware) for the building industry: integrated seamlessly in roof structures, canopies, structural glazing, and charge/share solutions.

Features:

•Glaz™ Spider Connected Systems - Premium Thermal Performance & Aesthectics. Engineered system with LVB/RLB(Engineered Bamboo interior for ultimate strength and uniform aesthetics.

•Configurations include vertical walls, rakeheads, corners, angled and roof glazing solutions.

•Monolithic, dual, and triple-glazed options in a variety of Low-E coatings as well as electro-chromatic glass.

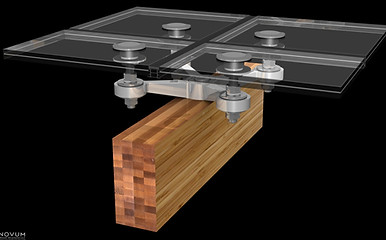

•Stainless Steel Spider Connectors Optimized for Efficient Installation.

Details:

Custom units are created for every project from your architectural specifications. We provide detailed shop drawings
of the structural system to ensure your requirements are met.

Once approved, our expert fabricators begin to craft the structure, taking the utmost care in providing this premium product.

All units are factory prepped, with base plates and gaskets. Units are pre-drilled, marked and labeled before disassembly, to ensure accurate and easy field assembly and glazing.

Typical Sizing:

-200 Series – 2” x 4”-10”(Depth) Cross Sections

-250 Series – 2.5” x 4”-10”(Depth) Cross Sections

-300 Series – 3” x 6”-12”(Depth) Cross Sections

-Custom Series - Integrated System - Structural Integration - Nearly any size.

Lengths:

-Can be seamlessly integrated into Structural System/Glazing System

-Lengths are designed to meet project requirements

-Typically up to 36’-0”, Larger sizes are possible, but require additional

  engineering and design of connections detailing.

Interior Finish:

-Commercial Grade Factory finished to meet design specification

 (Swatch approval required)

-Custom colors available

White Wash
White Wash
Clear
Bronze
Smoke
Lunar Grey
Espresso
Deep
